Carton Forming
Automated blank feeding, scoring, and pre-folding with servo-controlled precision for consistent box geometry at high speed.
View machinery →Industrial Packaging Automation
ZenpackerPro engineers reliable forming, folding, and sealing systems for manufacturers who demand uptime, accuracy, and scalable throughput across global production lines.
Solutions
From flat blanks to sealed, shelf-ready cartons — engineered for demanding industrial environments.
Automated blank feeding, scoring, and pre-folding with servo-controlled precision for consistent box geometry at high speed.
View machinery →Integrated tuck-in, glue, and tape sealing modules designed for rapid changeover between carton formats and board grades.
View machinery →Modular interfaces for conveyors, vision systems, and upstream/downstream equipment — built for seamless factory integration.
Discuss your line →Machinery Portfolio
Full-range industrial equipment from Weifang Anchuan — cartoning, bagging, and case erecting systems. Technical data from official product specifications.
Automatic cartoning systems for pharmaceutical, food, and industrial packaging — vertical and horizontal configurations.
Weifang Anchuan · ZenpackerPro
Horizontal chain continuous cartoning machine — high-speed flagship
Flagship ModelACZ-300 automatic horizontal chain continuous cartoning machine for large-scale production. Handles blisters, bottles, pouches, tubes, ampoules, granules and more.
| Machine Type | Horizontal chain continuous |
|---|---|
| Cartoning Speed | 40 – 260 cartons/min (material dependent) |
| Inner Pack Types | Blister, bottle, pouch, ointment, ampoule, granule, and other formats |
| Paper Box GSM | 250 – 350 g/m² (based on carton size) |
| Carton L × W × H | 80–180 × 25–90 × 15–75 mm |
| Leaflet GSM | 50 – 70 g/m² (based on carton size) |
| Leaflet Size (L × W) | 90–250 × 90–170 mm; 1–4 folds |
| Compressed Air | ≥ 0.6 MPa; ≥ 0.8 m³/min (vacuum generator) |
| Power Supply | 380V / 50Hz |
| Motor Power | 5 kW |
| Machine Dimensions (L × W × H) | 3,680 × 1,870 × 1,500 mm (feeder per layout) |
| Machine Weight | ≈ 3,800 kg |
Weifang Anchuan · ZenpackerPro
Vertical cam intermittent cartoning machine — mid-speed
ACZ-120 vertical cam intermittent cartoning machine for compact carton formats and flexible mid-speed lines.
| Machine Type | Vertical cam intermittent |
|---|---|
| Cartoning Speed | 40 – 120 cartons/min (material dependent) |
| Inner Pack Types | Blister, bottle, pouch, ointment, ampoule, granule, and other formats |
| Paper Box GSM | 250 – 350 g/m² (based on carton size) |
| Carton L × W × H | 50–130 × 30–90 × 15–50 mm |
| Leaflet GSM | 45 – 70 g/m² (based on carton size) |
| Leaflet Size (L × W) | 80–250 × 90–175 mm; 1–4 folds |
| Compressed Air | ≥ 0.6 MPa; 30–90 L/min (vacuum pump) or 120–160 L/min (vacuum generator) |
| Power Supply | 220 – 380V / 50Hz |
| Motor Power | 1.1 kW |
| Machine Dimensions (L × W × H) | 2,300 × 1,550 × 960 mm |
| Machine Weight | ≈ 1,200 kg |
Weifang Anchuan · ZenpackerPro
Vertical cam intermittent cartoning machine — high-speed
ACZ-160 vertical cam intermittent cartoning machine for demanding high-throughput cartoning requirements.
| Machine Type | Vertical cam intermittent |
|---|---|
| Cartoning Speed | 40 – 160 cartons/min (material dependent) |
| Inner Pack Types | Blister, bottle, pouch, ointment, ampoule, granule, and other formats |
| Paper Box GSM | 250 – 350 g/m² (based on carton size) |
| Carton L × W × H @ 160/min | 65–120 × 16–70 × 12–45 mm |
| Carton L × W × H @ 130/min | 60–120 × 15–90 × 12–55 mm |
| Leaflet GSM | 45 – 70 g/m² (based on carton size) |
| Leaflet Size (L × W) | 90–250 × 95–160 mm; 1–4 folds |
| Compressed Air | ≥ 0.6 MPa; 30–90 L/min (vacuum pump) or 120–160 L/min (vacuum generator) |
| Power Supply | 220 – 380V / 50Hz |
| Motor Power | 2.5 kW |
| Machine Dimensions (L × W × H) | 2,400 × 1,800 × 960 mm |
| Machine Weight | ≈ 1,500 kg |
Weifang Anchuan · ZenpackerPro
Horizontal chain intermittent cartoning machine — mid-speed
ACZ-130 horizontal chain intermittent cartoning machine for versatile mid-speed carton sizes.
| Machine Type | Horizontal chain intermittent |
|---|---|
| Cartoning Speed | 40 – 130 cartons/min (material dependent) |
| Inner Pack Types | Blister, bottle, pouch, ointment, ampoule, granule, and other formats |
| Paper Box GSM | 250 – 350 g/m² (based on carton size) |
| Carton L × W × H | 75–200 × 35–120 × 14–70 mm |
| Leaflet GSM | 45 – 70 g/m² (based on carton size) |
| Leaflet Size (L × W) | 80–250 × 90–170 mm; 1–4 folds |
| Compressed Air | ≥ 0.6 MPa; 120–160 L/min (vacuum generator) |
| Power Supply | 220 – 380V / 50Hz |
| Motor Power | 1.5 kW |
| Machine Dimensions (L × W × H) | 3,100 × 1,550 × 1,100 mm |
| Machine Weight | ≈ 1,400 kg |
Weifang Anchuan · ZenpackerPro
Horizontal chain intermittent cartoning machine — mid-speed
ACZ-140 horizontal chain intermittent cartoning machine with extended carton size range.
| Machine Type | Horizontal chain intermittent |
|---|---|
| Cartoning Speed | 30 – 140 cartons/min (material dependent) |
| Inner Pack Types | Blister, bottle, pouch, ointment, ampoule, granule, and other formats |
| Paper Box GSM | 250 – 350 g/m² (based on carton size) |
| Carton L × W × H | 65–240 × 30–180 × 15–75 mm |
| Leaflet GSM | 50 – 70 g/m² (based on carton size) |
| Leaflet Size (L × W) | 90–250 × 90–170 mm; 1–4 folds |
| Compressed Air | ≥ 0.6 MPa; 120–160 L/min (vacuum generator) |
| Power Supply | 380V / 50Hz |
| Motor Power | 1.5 kW |
| Machine Dimensions (L × W × H) | 3,250 × 1,770 × 1,210 mm |
| Machine Weight | ≈ 2,000 kg |
Horizontal continuous bagging systems for flat bags and M-bags — from official ACT-series specifications.
Weifang Anchuan · ZenpackerPro
Horizontal continuous bagging machine — flat bag, single-push
ACT-60D horizontal continuous bagging machine with direct-push or clamp-push for flat bags.
| Machine Type | Horizontal continuous / flat bag / single-push |
|---|---|
| Bagging Speed | 10 – 60 bags/min — flat bag (material dependent) |
| Pushing Method | Direct push or clamp push |
| Inner Pack Types | Drugs, medical devices, food, hardware, daily necessities, and others |
| Film / Material | Composite, aluminized, PE/PP and other films |
| Bag L × W × H | 150–350 × 80–200 × 15–75 mm |
| Compressed Air | ≥ 0.6 MPa; ≥ 0.8 m³/min (vacuum generator) |
| Power Supply | 3-phase 5-wire 380V / 50Hz |
| Motor Power | 5 kW |
| Machine Dimensions (L × W × H) | 2,885 × 1,548 × 1,392 mm (feeder per layout) |
| Machine Weight | ≈ 1,200 kg |
Weifang Anchuan · ZenpackerPro
Horizontal continuous bagging machine — M-bag, rotary single-push
ACT-60M horizontal continuous bagging machine for M-bags with rotary single-push configuration.
| Machine Type | Horizontal continuous / M-bag / rotary single-push |
|---|---|
| Bagging Speed | 10 – 50 bags/min — M-bag (material dependent) |
| Pushing Method | Direct push |
| Inner Pack Types | Drugs, medical devices, food, hardware, daily necessities, and others |
| Film / Material | OPP/CPP, PT/PE, KOP/CPP aluminized, composite, PE/PP films |
| Bag L × W × H | 150–350 × 70–150 × 40–90 mm |
| Compressed Air | ≥ 0.6 MPa; ≥ 0.8 m³/min (vacuum generator) |
| Power Supply | 3-phase 5-wire 380V / 50Hz |
| Motor Power | 5.5 kW |
| Machine Dimensions (L × W × H) | 2,200 × 1,330 × 970 mm (feeder per layout) |
| Machine Weight | ≈ 500 kg |
Weifang Anchuan · ZenpackerPro
Horizontal continuous bagging machine — flat bag, dual-push
ACT-100S horizontal continuous bagging machine with linear dual-push for flat bags.
| Machine Type | Horizontal continuous / flat bag / dual-push |
|---|---|
| Bagging Speed | 30 – 55 bags/min — flat bag (material dependent) |
| Pushing Method | Direct push or clamp push |
| Inner Pack Types | Drugs, medical devices, food, hardware, daily necessities, and others |
| Film / Material | OPP/CPP, PT/PE, KOP/CPP aluminized, composite, PE/PP films |
| Bag L × W | 150–320 × 70–170 mm |
| Compressed Air | ≥ 0.6 MPa; ≥ 0.8 m³/min (vacuum generator) |
| Power Supply | 3-phase 5-wire 380V / 50Hz |
| Motor Power | 6.5 kW |
| Machine Dimensions (L × W × H) | 3,400 × 1,330 × 1,678 mm (feeder per layout) |
| Machine Weight | ≈ 900 kg |
Weifang Anchuan · ZenpackerPro
Horizontal continuous bagging machine — flat bag, triple-push (1 tray × 3)
ACT-120SS horizontal continuous bagging machine with linear triple-push — 1 tray, 3 bags per cycle.
| Machine Type | Horizontal continuous / flat bag / triple-push |
|---|---|
| Bagging Speed | Host 10–38 cycles/min; 1 tray × 3 bags = 30–114 bags/min |
| Pushing Method | Direct push or clamp push |
| Inner Pack Types | Drugs, medical devices, food, hardware, daily necessities, and others |
| Film / Material | OPP/CPP, PT/PE, KOP/CPP aluminized, composite, PE/PP films |
| Bag L × W | 140–220 × 90–160 mm (customizable) |
| Compressed Air | ≥ 0.6 MPa; ≥ 0.8 m³/min (vacuum generator) |
| Power Supply | 3-phase 5-wire 380V / 50Hz |
| Motor Power | 3 kW (host) |
| Optional | Steel letter coding at sealing area |
| Machine Dimensions (L × W × H) | 2,150 × 1,000 × 1,050 mm (feeder per layout) |
| Machine Weight | ≈ 880 kg |
Automatic case opening and folding systems — from official ACK-series specifications.
Weifang Anchuan · ZenpackerPro
Automatic case opening and folding machine
ACK-50D automatic case erector and folder for pre-scored cartons — tongue-lock and auto-bottom formats. Manual loading, automatic folding, air-blow discharge.
| Machine Type | Automatic case erector / folder |
|---|---|
| Operating Speed | 20 – 30 cases/min (material dependent) |
| Carton Requirement | Pre-scored machine-made cartons required |
| Tongue-lock L × W × H | 30–100 × 30–75 × 80–200 mm |
| Auto-bottom L × W × H | 40–100 × 40–75 × 80–200 mm |
| Power Supply | 220V / 50Hz |
| Motor Power | 0.5 kW |
| Compressed Air | 0.5 – 0.8 MPa; 1.5 m³/min |
| Noise Level | ≤ 85 dB |
| Machine Dimensions (L × W × H) | 700 × 540 × 1,500 mm |
| Machine Weight | ≈ 68 kg |
| Operation | Manual load → auto fold → air-blow discharge (1 operator) |
* Specifications from official Weifang Anchuan product documentation. Final parameters subject to engineering confirmation.
Industries
Proven performance across food, pharmaceutical, consumer goods, and industrial packaging applications.

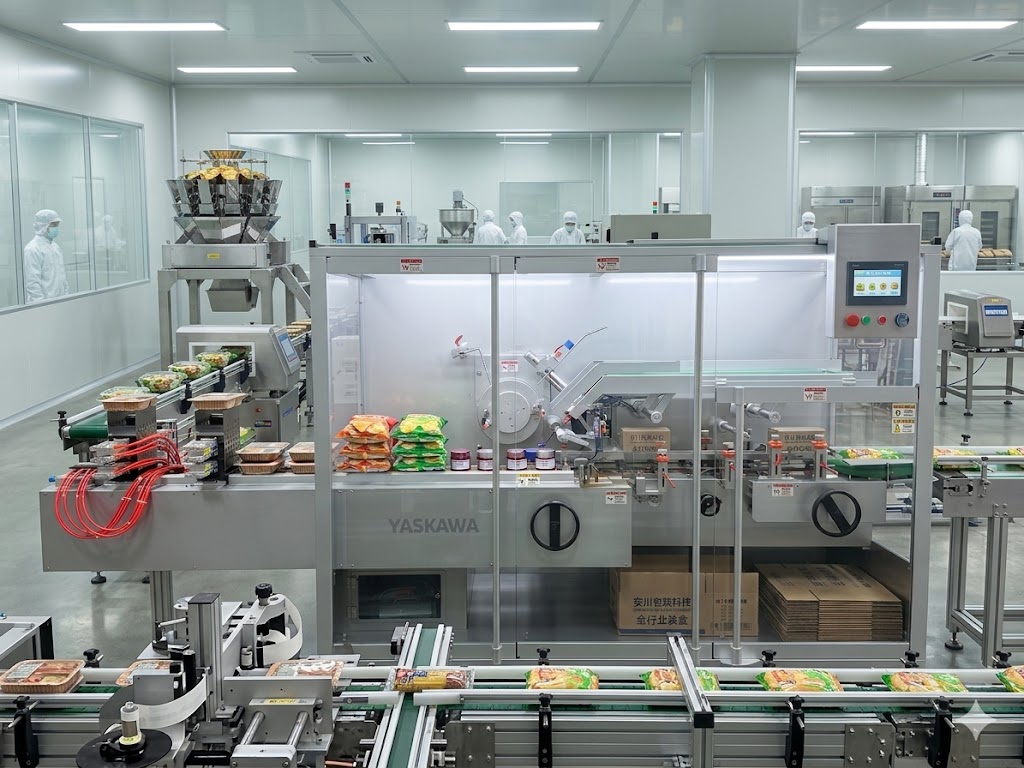

Hygiene-compliant forming systems for dry goods, frozen foods, and beverage multipacks.

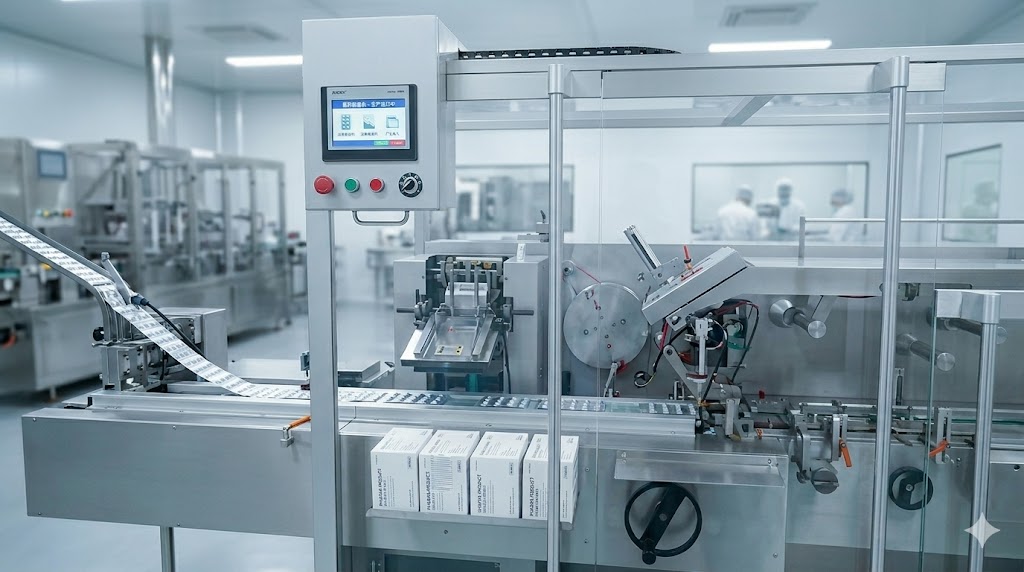

Precision carton handling with validation documentation support for regulated environments.
Validated cartoning and bagging systems for medical devices, diagnostic kits, and sterile packaging requirements.
Protective packaging solutions for sensitive components and retail display cartons.
High-quality finish forming for premium shelf presentation and brand consistency.
Integrated packaging solutions for daily chemicals and pet supplies, combining aesthetics with durability.
Robust shipping carton solutions optimized for fulfillment center throughput.
Heavy-duty board handling for spare parts, hardware, and B2B distribution packaging.
About ZenpackerPro
ZenpackerPro specializes in the design, manufacture, and global deployment of industrial carton packaging machinery. Our engineering team combines mechanical precision, electrical control expertise, and field-proven service to deliver systems that maximize uptime and minimize total cost of ownership.
Every machine undergoes rigorous factory acceptance testing before shipment. We provide installation guidance, operator training, and responsive after-sales support to ensure your line reaches full productivity quickly.
